Functional Description：

          DDC Module DDC2003-8600 Shanghai supports graphical, JS, and PLC mixed programming, making it convenient for users to achieve logical functions in different application scenarios. At the same time, it is equipped with a built-in WEB server and supports HTML5 configuration pages, so users do not need to purchase configuration software. They only need to use a computer, phone, iPad, or a product with built-in browser function to log in to the configuration screen for monitoring. In addition, it also has functions such as WeChat alarm, DingTalk alarm, email alarm, etc; It can also be forwarded to BACnet servers, Modbus servers, OPC UA servers, IEC61850 servers, HTTP WEB services, and integrated with third-party systems.

        Application Fields ：

        It is used in building automatic control system or industrial field to connect some common control equipment, such as PLC, DDC, UPS, central air conditioner, elevator, fire control system, light control system, electricity meter, water meter, etc.This allows users to monitor on-site devices on their phones, ipads and PCS.


        Operating Environment ：

        OS: Windows XP/2000/2003/Win 7/Win8/Win10/Win Server 2003/Win Server2008/Win Vista etc.Browser: IE9( and above), Apple's Safari, Google Chrome, 360 and Firefox, Opera etc.
Support register type and number
        Note: Register points are dynamically supported and the total number of points cannot exceed 256.

          Main Parameter：

         Model specification：

          Product display ：

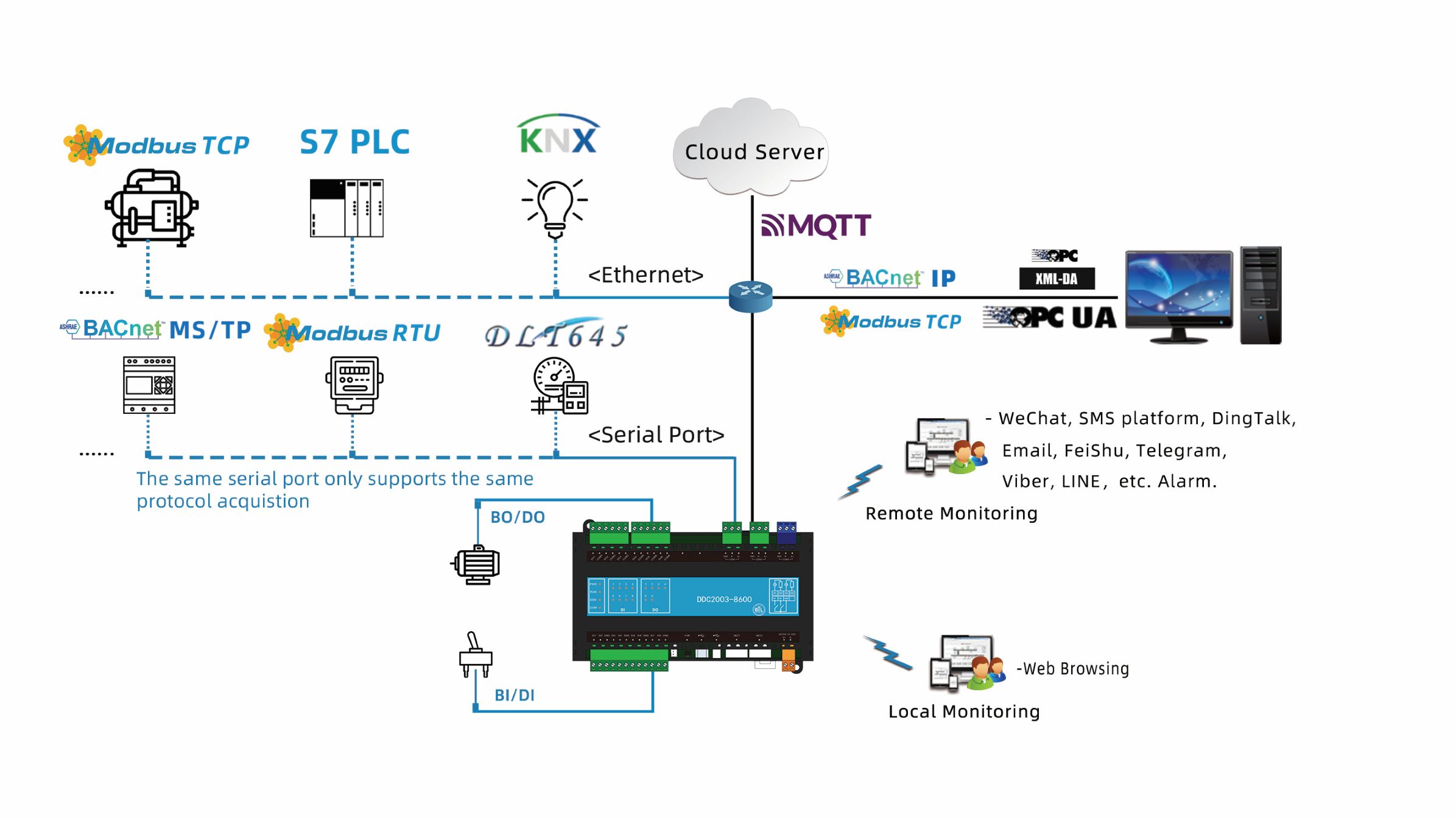

          Correspondence diagram of controller wiring diagram
